โมดูลรีโมท และ ตัวรับสัญญาณ HX1838 IR Remote Control Module SNP-00144

1#include <IRremote.h>
2

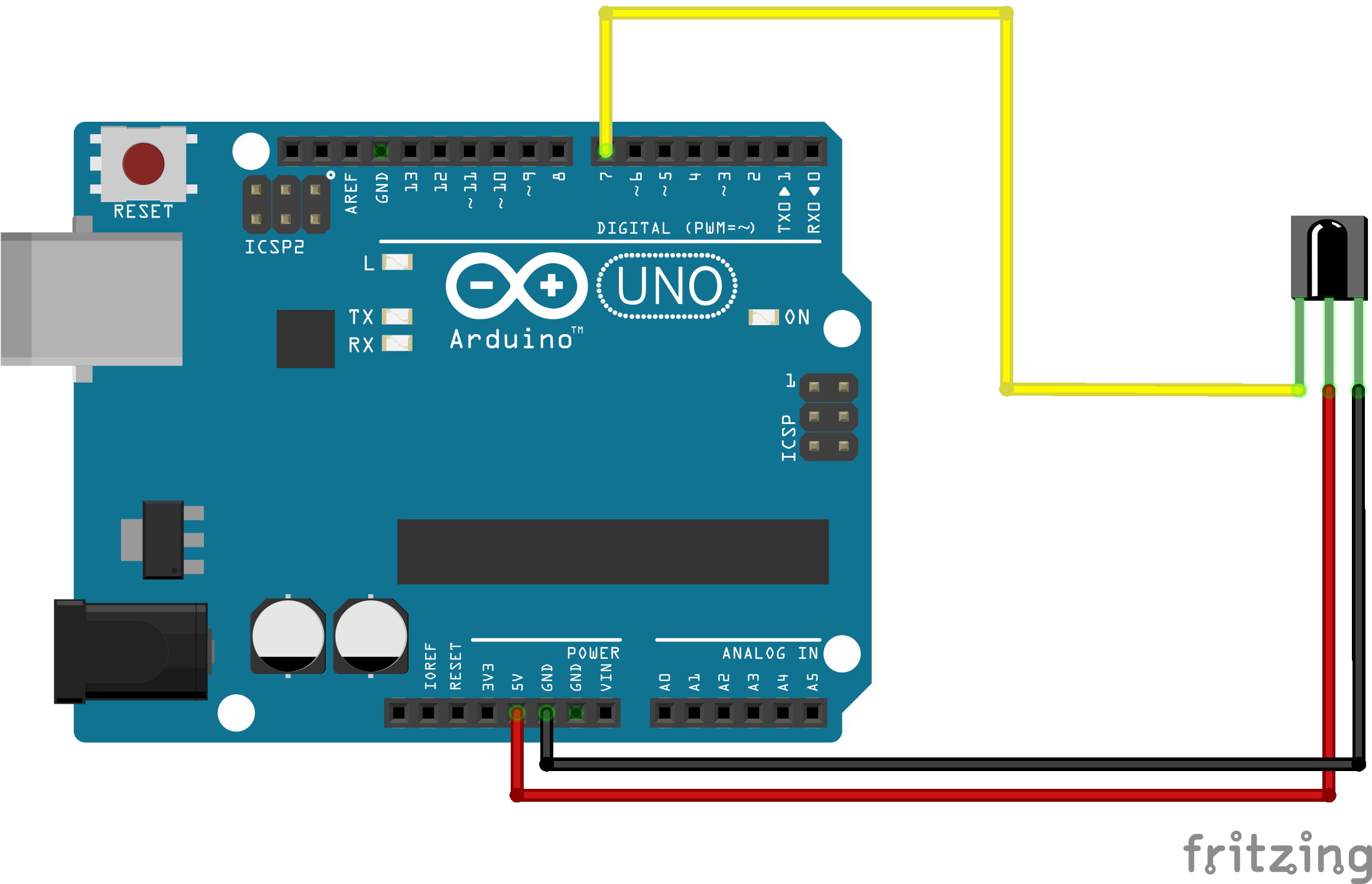

3const int IR_RECEIVE_PIN = 7;
4
5void setup() {
6  Serial.begin(9600);
7  IrReceiver.begin(IR_RECEIVE_PIN, ENABLE_LED_FEEDBACK);
8}
9
10void loop() {
11  if (IrReceiver.decode()) {
12    uint32_t value = IrReceiver.decodedIRData.command;
13    switch (value) {
14      case 0x45: Serial.println("1"); break;
15      case 0x46: Serial.println("2"); break;
16      case 0x47: Serial.println("3"); break;
17      case 0x44: Serial.println("4"); break;
18      case 0x40: Serial.println("5"); break;
19      case 0x43: Serial.println("6"); break;
20      case 0x07: Serial.println("7"); break;
21      case 0x15: Serial.println("8"); break;
22      case 0x09: Serial.println("9"); break;
23      case 0x19: Serial.println("0"); break;
24      case 0x16: Serial.println("*"); break;
25      case 0x0D: Serial.println("#"); break;
26      case 0x18: Serial.println("UP"); break;
27      case 0x52: Serial.println("DOWN"); break;
28      case 0x08: Serial.println("LEFT"); break;
29      case 0x5A: Serial.println("RIGHT"); break;
30      case 0x1C: Serial.println("OK"); break;
31      default: Serial.print("UNKNOWN: "); Serial.println(value, HEX); break;
32    }
33    IrReceiver.resume();
34  }
35}
36
