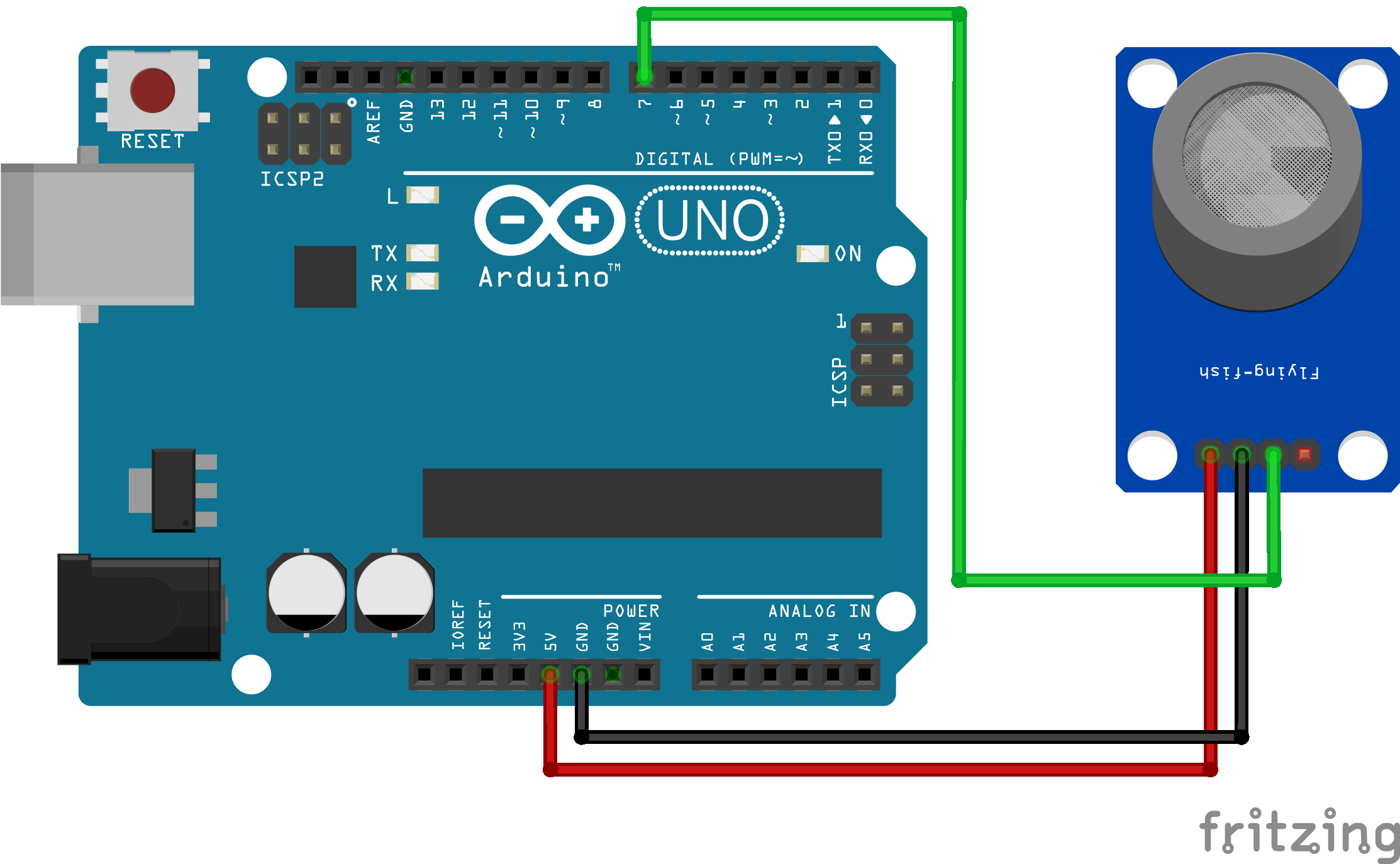

MQ-2 โมดูลตรวจจับแก็ส และ ควัน MQ2 SNP-00047

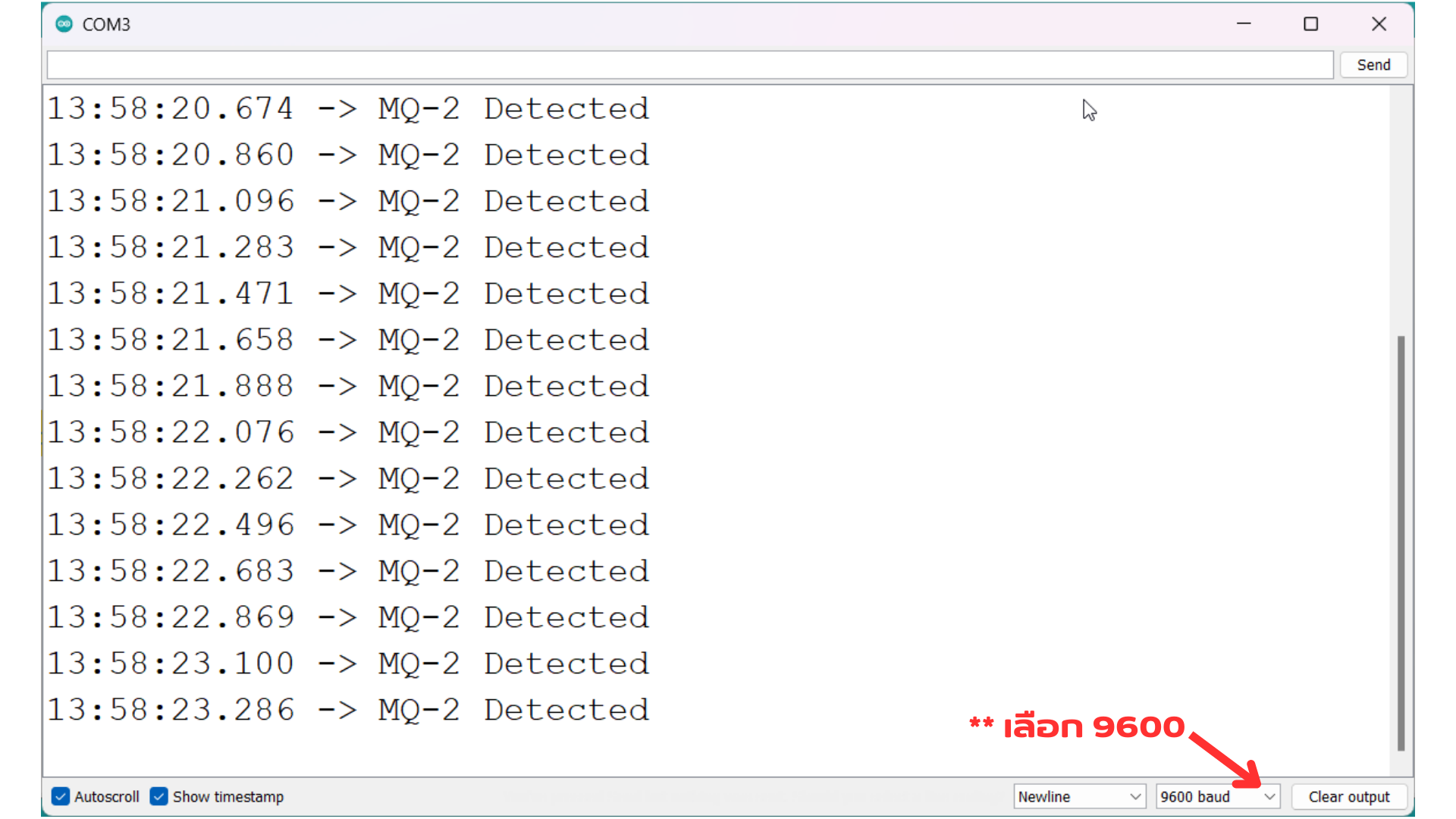

1int sensor = 7;
2int val = 0;
3void setup() {
4  Serial.begin(9600);
5}
6void loop() {
7  val = digitalRead(sensor);
8  if (val == 0) {
9    Serial.println("MQ-2 Detected");
10  }
11  delay(500);
12}

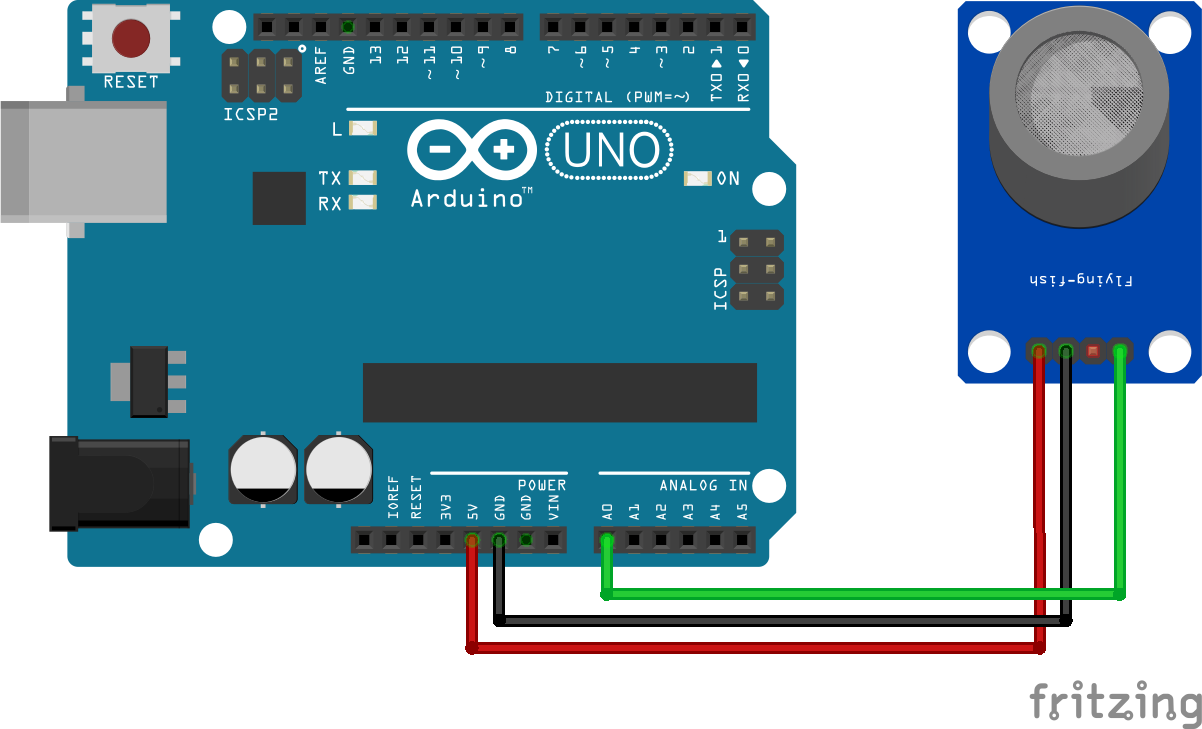

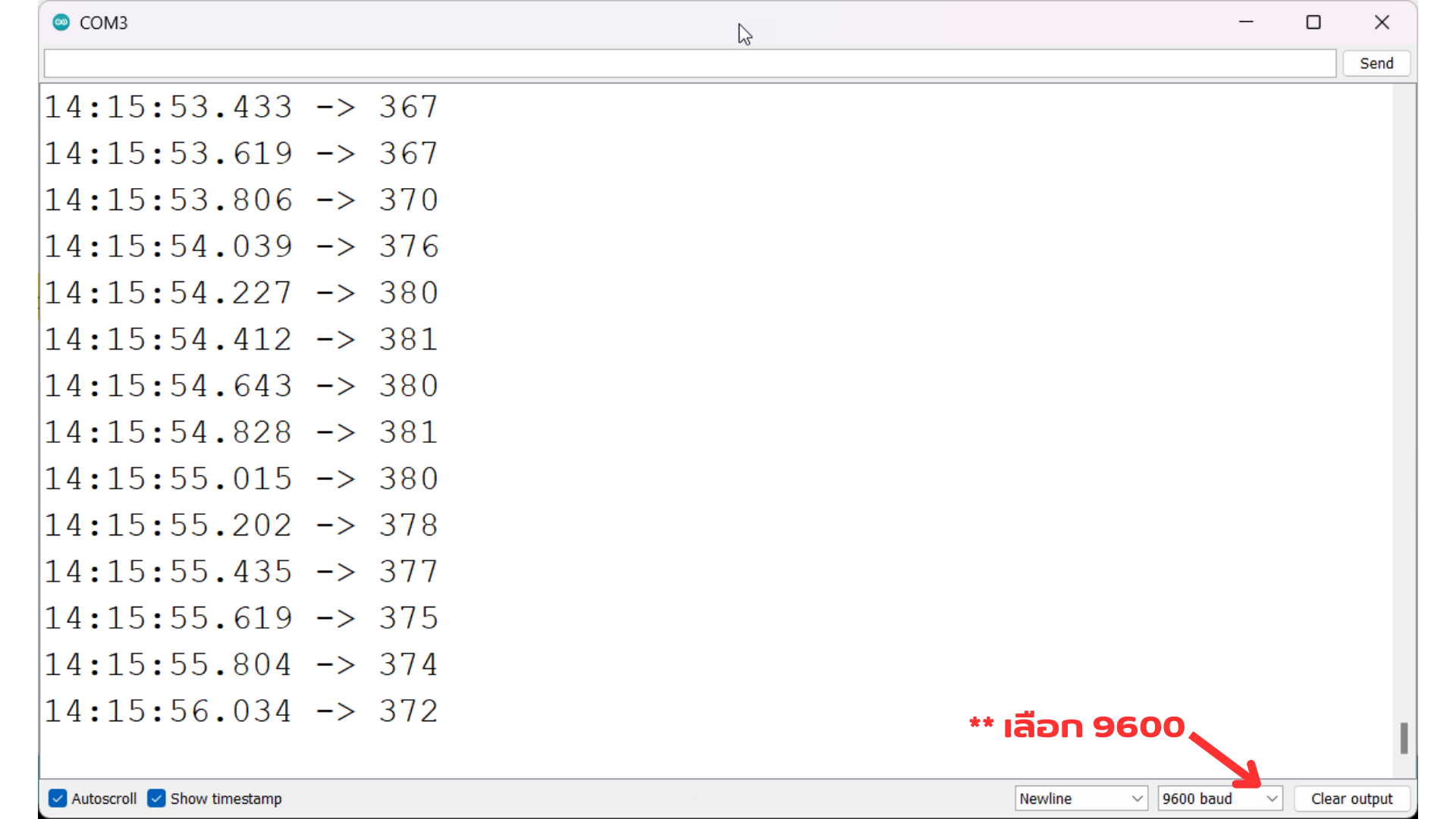

1int sensor = A0;
2int val = 0;
3void setup() {
4  Serial.begin(9600);
5}
6void loop() {
7  val = analogRead(sensor);
8  Serial.println(val);
9  delay(500);
10}

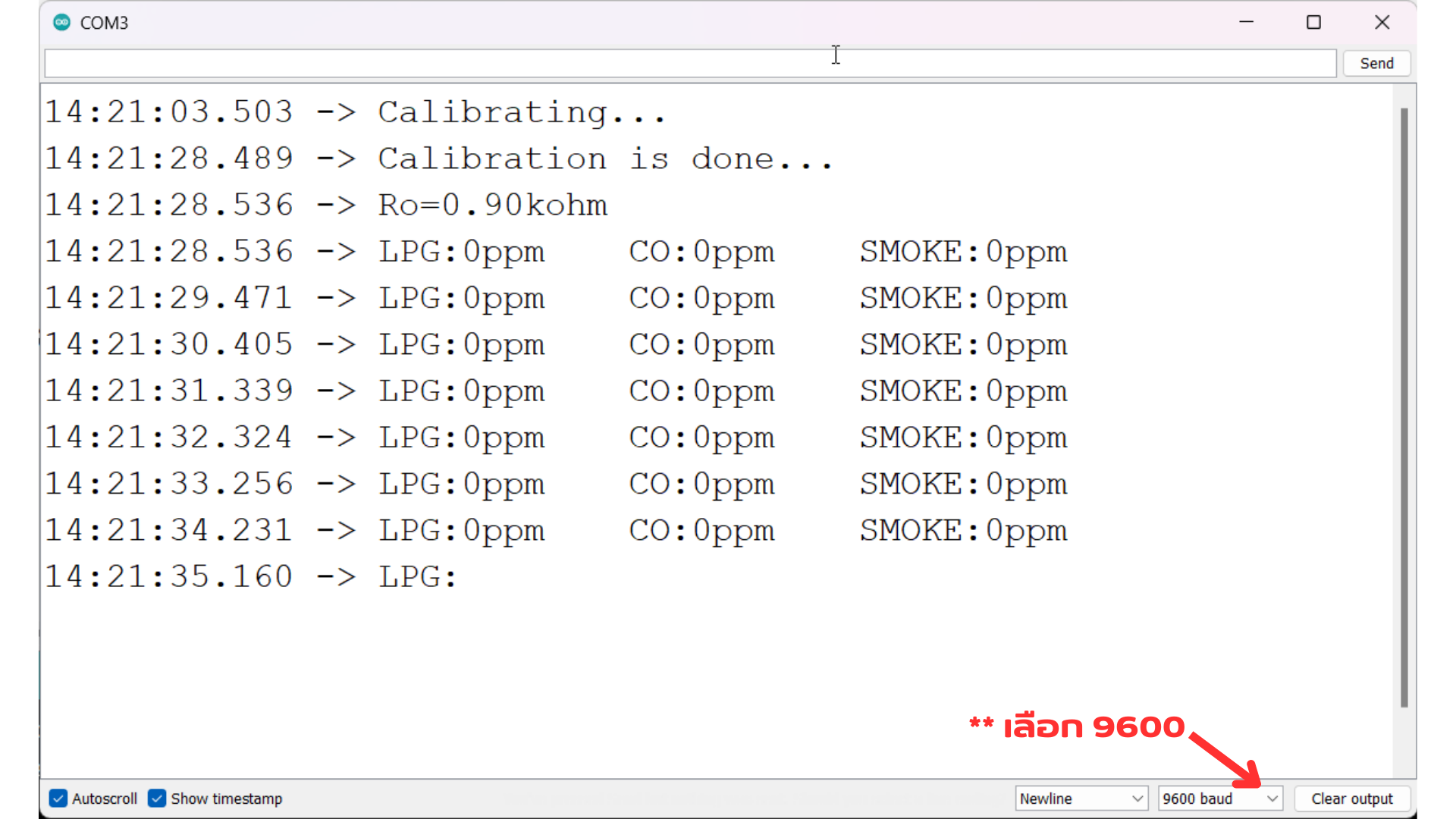

1/*******************Demo for MQ-2 Gas Sensor Module V1.0*****************************
2  Support:  Tiequan Shao: support[at]sandboxelectronics.com
3  Lisence: Attribution-NonCommercial-ShareAlike 3.0 Unported (CC BY-NC-SA 3.0)
4  Note:    This piece of source code is supposed to be used as a demostration ONLY. More
5         sophisticated calibration is required for industrial field application.
6                                                    Sandbox Electronics    2011-04-25
7************************************************************************************/
8
9/************************Hardware Related Macros************************************/
10#define         MQ_PIN                       (0)     //define which analog input channel you are going to use
11#define         RL_VALUE                     (5)     //define the load resistance on the board, in kilo ohms
12#define         RO_CLEAN_AIR_FACTOR          (9.83)  //RO_CLEAR_AIR_FACTOR=(Sensor resistance in clean air)/RO,
13//which is derived from the chart in datasheet
14
15/***********************Software Related Macros************************************/
16#define         CALIBARAION_SAMPLE_TIMES     (50)    //define how many samples you are going to take in the calibration phase
17#define         CALIBRATION_SAMPLE_INTERVAL  (500)   //define the time interal(in milisecond) between each samples in the
18//cablibration phase
19#define         READ_SAMPLE_INTERVAL         (50)    //define how many samples you are going to take in normal operation
20#define         READ_SAMPLE_TIMES            (5)     //define the time interal(in milisecond) between each samples in
21//normal operation
22
23/**********************Application Related Macros**********************************/
24#define         GAS_LPG                      (0)
25#define         GAS_CO                       (1)
26#define         GAS_SMOKE                    (2)
27
28/*****************************Globals***********************************************/
29float           LPGCurve[3]  =  {2.3, 0.21, -0.47}; //two points are taken from the curve.
30//with these two points, a line is formed which is "approximately equivalent"
31//to the original curve.
32//data format:{ x, y, slope}; point1: (lg200, 0.21), point2: (lg10000, -0.59)
33float           COCurve[3]  =  {2.3, 0.72, -0.34};  //two points are taken from the curve.
34//with these two points, a line is formed which is "approximately equivalent"
35//to the original curve.
36//data format:{ x, y, slope}; point1: (lg200, 0.72), point2: (lg10000,  0.15)
37float           SmokeCurve[3] = {2.3, 0.53, -0.44}; //two points are taken from the curve.
38//with these two points, a line is formed which is "approximately equivalent"
39//to the original curve.
40//data format:{ x, y, slope}; point1: (lg200, 0.53), point2: (lg10000,  -0.22)
41float           Ro           =  10;                 //Ro is initialized to 10 kilo ohms
42
43void setup()
44{
45  Serial.begin(9600);                               //UART setup, baudrate = 9600bps
46  Serial.print("Calibrating...\n");
47  Ro = MQCalibration(MQ_PIN);                       //Calibrating the sensor. Please make sure the sensor is in clean air
48  //when you perform the calibration
49  Serial.print("Calibration is done...\n");
50  Serial.print("Ro=");
51  Serial.print(Ro);
52  Serial.print("kohm");
53  Serial.print("\n");
54}
55
56void loop()
57{
58  Serial.print("LPG:");
59  Serial.print(MQGetGasPercentage(MQRead(MQ_PIN) / Ro, GAS_LPG) );
60  Serial.print( "ppm" );
61  Serial.print("    ");
62  Serial.print("CO:");
63  Serial.print(MQGetGasPercentage(MQRead(MQ_PIN) / Ro, GAS_CO) );
64  Serial.print( "ppm" );
65  Serial.print("    ");
66  Serial.print("SMOKE:");
67  Serial.print(MQGetGasPercentage(MQRead(MQ_PIN) / Ro, GAS_SMOKE) );
68  Serial.print( "ppm" );
69  Serial.print("\n");
70  delay(200);
71}
72
73/****************** MQResistanceCalculation ****************************************
74  Input:   raw_adc - raw value read from adc, which represents the voltage
75  Output:  the calculated sensor resistance
76  Remarks: The sensor and the load resistor forms a voltage divider. Given the voltage
77         across the load resistor and its resistance, the resistance of the sensor
78         could be derived.
79************************************************************************************/
80float MQResistanceCalculation(int raw_adc)
81{
82  return ( ((float)RL_VALUE * (1023 - raw_adc) / raw_adc));
83}
84
85/***************************** MQCalibration ****************************************
86  Input:   mq_pin - analog channel
87  Output:  Ro of the sensor
88  Remarks: This function assumes that the sensor is in clean air. It use
89         MQResistanceCalculation to calculates the sensor resistance in clean air
90         and then divides it with RO_CLEAN_AIR_FACTOR. RO_CLEAN_AIR_FACTOR is about
91         10, which differs slightly between different sensors.
92************************************************************************************/
93float MQCalibration(int mq_pin)
94{
95  int i;
96  float val = 0;
97
98  for (i = 0; i < CALIBARAION_SAMPLE_TIMES; i++) {      //take multiple samples
99    val += MQResistanceCalculation(analogRead(mq_pin));
100    delay(CALIBRATION_SAMPLE_INTERVAL);
101  }
102  val = val / CALIBARAION_SAMPLE_TIMES;                 //calculate the average value
103
104  val = val / RO_CLEAN_AIR_FACTOR;                      //divided by RO_CLEAN_AIR_FACTOR yields the Ro
105  //according to the chart in the datasheet
106
107  return val;
108}
109/*****************************  MQRead *********************************************
110  Input:   mq_pin - analog channel
111  Output:  Rs of the sensor
112  Remarks: This function use MQResistanceCalculation to caculate the sensor resistenc (Rs).
113         The Rs changes as the sensor is in the different consentration of the target
114         gas. The sample times and the time interval between samples could be configured
115         by changing the definition of the macros.
116************************************************************************************/
117float MQRead(int mq_pin)
118{
119  int i;
120  float rs = 0;
121
122  for (i = 0; i < READ_SAMPLE_TIMES; i++) {
123    rs += MQResistanceCalculation(analogRead(mq_pin));
124    delay(READ_SAMPLE_INTERVAL);
125  }
126
127  rs = rs / READ_SAMPLE_TIMES;
128
129  return rs;
130}
131
132/*****************************  MQGetGasPercentage **********************************
133  Input:   rs_ro_ratio - Rs divided by Ro
134         gas_id      - target gas type
135  Output:  ppm of the target gas
136  Remarks: This function passes different curves to the MQGetPercentage function which
137         calculates the ppm (parts per million) of the target gas.
138************************************************************************************/
139int MQGetGasPercentage(float rs_ro_ratio, int gas_id)
140{
141  if ( gas_id == GAS_LPG ) {
