MQ-4 โมดูลตรวจจับมีเทน/โพรเพน/บิวเทน MQ4 SNP-00049

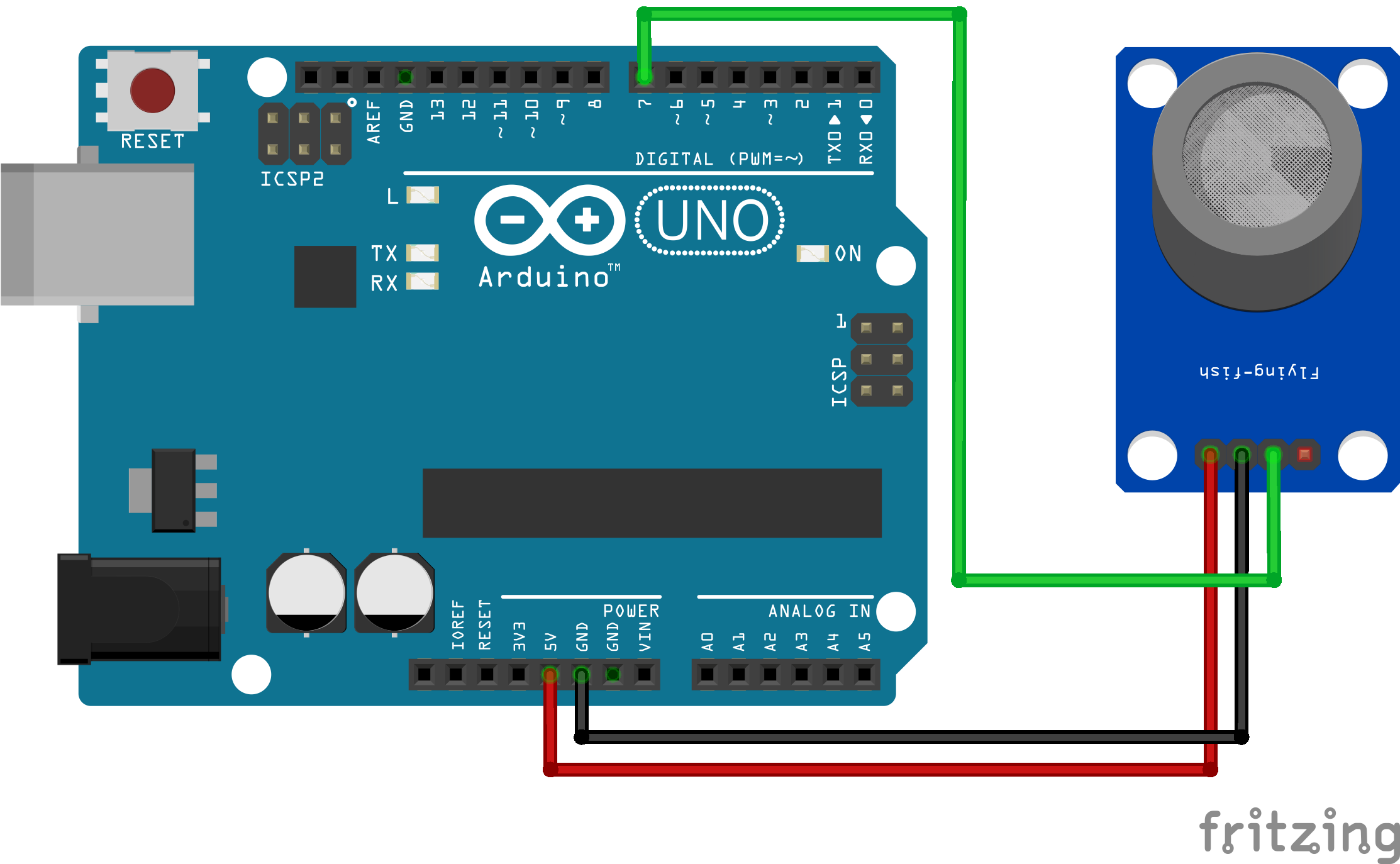

1int sensor = 7;
2int val = 0;
3void setup() {
4  Serial.begin(9600);
5}
6void loop() {
7  val = digitalRead(sensor);
8  if (val == 0) {
9    Serial.println("MQ-4 Detected");
10  }
11  delay(500);
12}

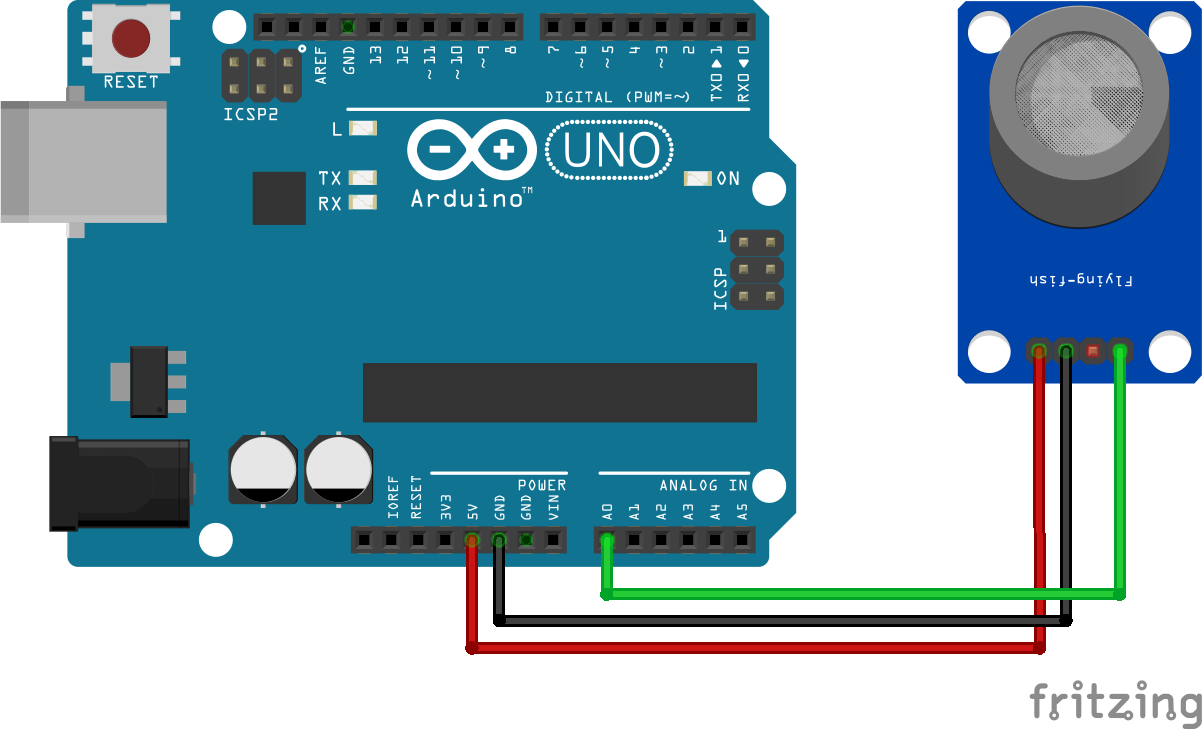

1int sensor = A0;
2int val = 0;
3void setup() {
4  Serial.begin(9600);
5}
6void loop() {
7  val = analogRead(sensor);
8  Serial.println(val);
9  delay(500);
10}

1/*******************Demo for MQ-4 Gas Sensor Module*****************************
2  Note:    This piece of source code is supposed to be used as a demonstration ONLY.
3************************************************************************************/
4
5/************************Hardware Related Macros************************************/
6#define         MQ_PIN                       (0)     //define which analog input channel you are going to use
7#define         RL_VALUE                     (5)     //define the load resistance on the board, in kilo ohms
8#define         RO_CLEAN_AIR_FACTOR          (4.4)   //RO_CLEAR_AIR_FACTOR=(Sensor resistance in clean air)/RO
9
10/***********************Software Related Macros************************************/
11#define         CALIBARAION_SAMPLE_TIMES     (50)    //define how many samples you are going to take in the calibration phase
12#define         CALIBRATION_SAMPLE_INTERVAL  (500)   //define the time interval (in millisecond) between each sample in the
13                                                     //calibration phase
14#define         READ_SAMPLE_INTERVAL         (50)    //define the time interval (in millisecond) between each sample in
15                                                     //normal operation
16#define         READ_SAMPLE_TIMES            (5)     //define how many samples you are going to take in normal operation
17
18/**********************Application Related Macros**********************************/
19#define         GAS_METHANE                  (0)
20
21/*****************************Globals***********************************************/
22float           MethaneCurve[3]  =  {2.3, 0.38, -0.38}; //two points are taken from the curve.
23//with these two points, a line is formed which is "approximately equivalent"
24//to the original curve.
25//data format:{ x, y, slope}; point1: (lg1000, 0.38), point2: (lg10000, 0.23)
26float           Ro           =  10;                   //Ro is initialized to 10 kilo ohms
27
28void setup()
29{
30  Serial.begin(9600);                               //UART setup, baudrate = 9600bps
31  Serial.print("Calibrating...\n");
32  Ro = MQCalibration(MQ_PIN);                       //Calibrating the sensor. Please make sure the sensor is in clean air
33                                                    //when you perform the calibration
34  Serial.print("Calibration is done...\n");
35  Serial.print("Ro=");
36  Serial.print(Ro);
37  Serial.print("kohm");
38  Serial.print("\n");
39}
40
41void loop()
42{
43  Serial.print("Methane:");
44  Serial.print(MQGetGasPercentage(MQRead(MQ_PIN) / Ro, GAS_METHANE) );
45  Serial.print( "ppm" );
46  Serial.print("\n");
47  delay(200);
48}
49
50/****************** MQResistanceCalculation ****************************************
51  Input:   raw_adc - raw value read from adc, which represents the voltage
52  Output:  the calculated sensor resistance
53  Remarks: The sensor and the load resistor forms a voltage divider. Given the voltage
54           across the load resistor and its resistance, the resistance of the sensor
55           could be derived.
56************************************************************************************/
57float MQResistanceCalculation(int raw_adc)
58{
59  return ( ((float)RL_VALUE * (1023 - raw_adc) / raw_adc));
60}
61
62/***************************** MQCalibration ****************************************
63  Input:   mq_pin - analog channel
64  Output:  Ro of the sensor
65  Remarks: This function assumes that the sensor is in clean air. It uses
66           MQResistanceCalculation to calculate the sensor resistance in clean air
67           and then divides it with RO_CLEAN_AIR_FACTOR. RO_CLEAN_AIR_FACTOR is about
68           4.4 for MQ-4, which differs slightly between different sensors.
69************************************************************************************/
70float MQCalibration(int mq_pin)
71{
72  int i;
73  float val = 0;
74
75  for (i = 0; i < CALIBARAION_SAMPLE_TIMES; i++) {      //take multiple samples
76    val += MQResistanceCalculation(analogRead(mq_pin));
77    delay(CALIBRATION_SAMPLE_INTERVAL);
78  }
79  val = val / CALIBARAION_SAMPLE_TIMES;                 //calculate the average value
80
81  val = val / RO_CLEAN_AIR_FACTOR;                      //divided by RO_CLEAN_AIR_FACTOR yields the Ro
82                                                        //according to the chart in the datasheet
83
84  return val;
85}
86/*****************************  MQRead *********************************************
87  Input:   mq_pin - analog channel
88  Output:  Rs of the sensor
89  Remarks: This function uses MQResistanceCalculation to calculate the sensor resistance (Rs).
90           The Rs changes as the sensor is in different concentrations of the target
91           gas. The sample times and the time interval between samples can be configured
92           by changing the definition of the macros.
93************************************************************************************/
94float MQRead(int mq_pin)
95{
96  int i;
97  float rs = 0;
98
99  for (i = 0; i < READ_SAMPLE_TIMES; i++) {
100    rs += MQResistanceCalculation(analogRead(mq_pin));
101    delay(READ_SAMPLE_INTERVAL);
102  }
103
104  rs = rs / READ_SAMPLE_TIMES;
105
106  return rs;
107}
108
109/*****************************  MQGetGasPercentage **********************************
110  Input:   rs_ro_ratio - Rs divided by Ro
111           gas_id      - target gas type
112  Output:  ppm of the target gas
113  Remarks: This function passes different curves to the MQGetPercentage function which
114           calculates the ppm (parts per million) of the target gas.
115************************************************************************************/
116int MQGetGasPercentage(float rs_ro_ratio, int gas_id)
117{
118  if ( gas_id == GAS_METHANE ) {
119    return MQGetPercentage(rs_ro_ratio, MethaneCurve);
120  }
121
122  return 0;
123}
124
125/*****************************  MQGetPercentage **********************************
126  Input:   rs_ro_ratio - Rs divided by Ro
127           pcurve      - pointer to the curve of the target gas
128  Output:  ppm of the target gas
129  Remarks: By using the slope and a point of the line, the x (logarithmic value of ppm)
130           of the line could be derived if y (rs_ro_ratio) is provided. As it is a
131           logarithmic coordinate, power of 10 is used to convert the result to a non-logarithmic
132           value.
133************************************************************************************/
134int MQGetPercentage(float rs_ro_ratio, float *pcurve)
135{
136  return (pow(10, ( ((log(rs_ro_ratio) - pcurve[1]) / pcurve[2]) + pcurve[0])));
137}
138
